Multichannel Temperature Scanner TSC12

Describtion

The temperature loggers of the TSC series are suitable for the simultaneous monitoring of twelve thermocouples with high accuracy. Thermocouple connection types can be selected individually according to customer specifications, whereby all channels are equipped with the same sensor types. Acquired data is transferred via USB.

All common types (K, T, J, B, E, N, R, S) are supported. Depending on the type, temperatures from -270°C to 1820°C can be acquired and monitored.

All TSC12 temperature scanners are optionally available with Ethernet (LAN), RS232 (SubD) or CAN bus interface. Several CAN devices can be cascaded for data transmission via CAN bus, so that test scenarios with a very high number of temperature measuring points can be carried out.

Features:

  • Supported types: K, T, J, B, E, N, R, S
  • Sampling rate: up to 50Hz/channel
  • Robust aluminium housing
  • Data transfer via USB
  • Optionally equipped with Ethernet (LAN), RS232 (SubD) or CAN bus (M8) interface

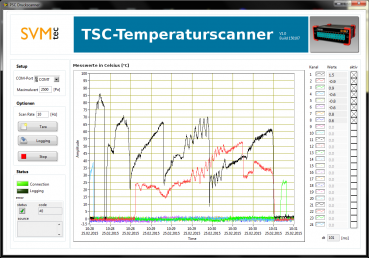

  • Free software for configuration and logging
  • LabVIEW driver available
Technical Data
Available TC connectors

and measuring ranges

Type min °C max °C
K -270 1300
J -210 1200
N -270 1300
E -270 1000
T -270 400
R -50 1768
S -50 1768
B 0 1820
Dimensions 130 x 55 x 95 mm
Power supply
via USB / 7-24VDC, 1A
Resolution 19-Bit
Sampling rate per channel
50 Hz
Additional interfaces
CAN (M8)
RS232 (SubD)
Ethernet
