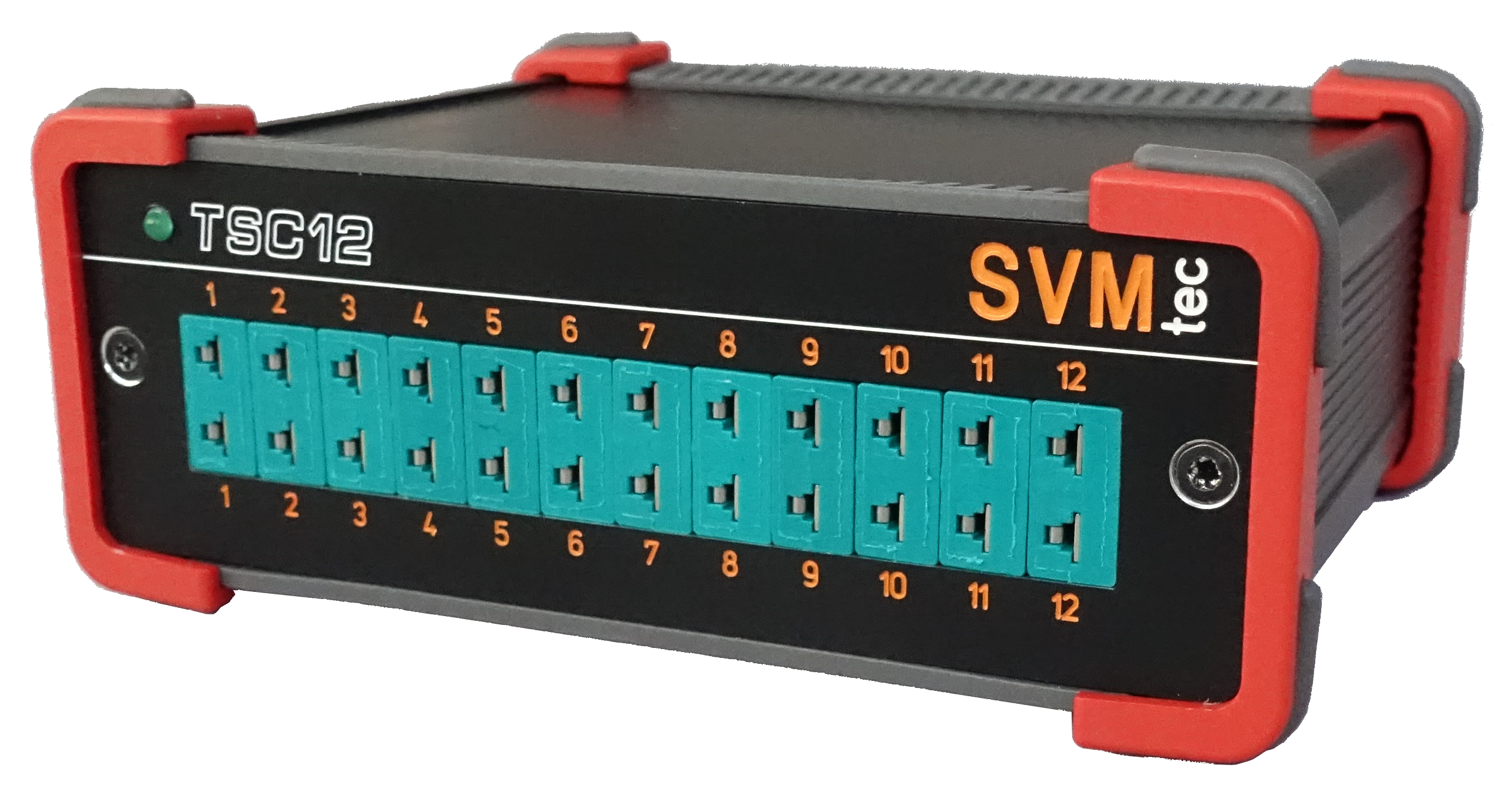

Multichannel Temperature Scanner TSC12
The TSC12 pressure scanners are capable of measuring 12 thermocouple voltage signals simultaneously, featuring high accuracy and a minimal offset drift. Each thermocouple sockets of all devices can be individually customized according to customer specifications. Data is transmitted via USB (standard).
All common thermocouple socket types (K, T, J, B, E, N, R, S) are supported. Depending on the socket type temperatures ranging from -270°C to 1820°C can be measured.
Ethernet- (LAN), RS232- (SubD) or CAN-interfaces are optionally available.
The device has the following properties:
- Supported thermocouple socket types: K, T, J, B, E, N, R, S
- Sample rate: up to 50Hz/ channel
- Rigid aluminum housing
- Data transfer via USB
- Optionally Ethernet- (LAN), RS232- (SubD) oder CAN- (M8) interface available

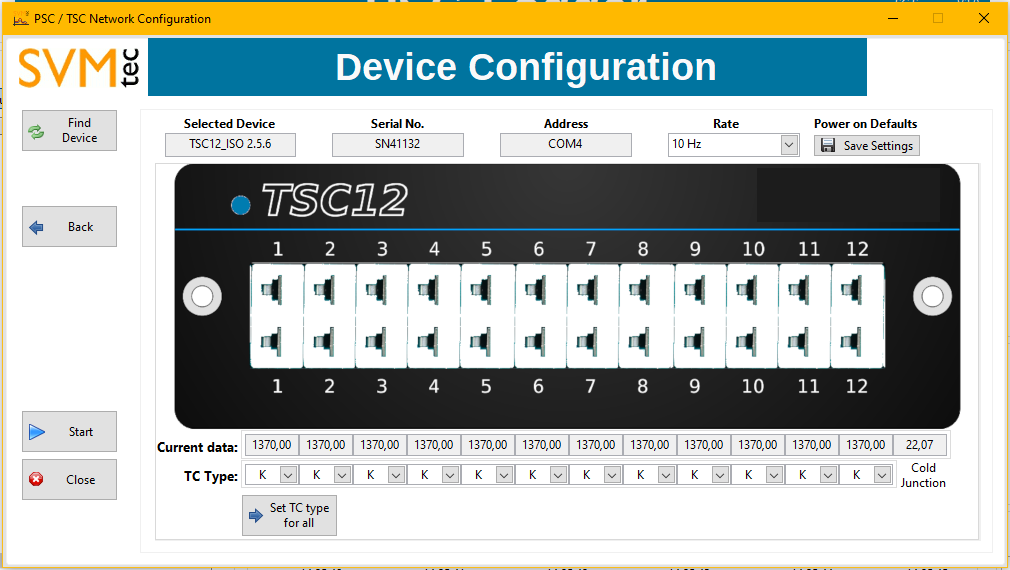

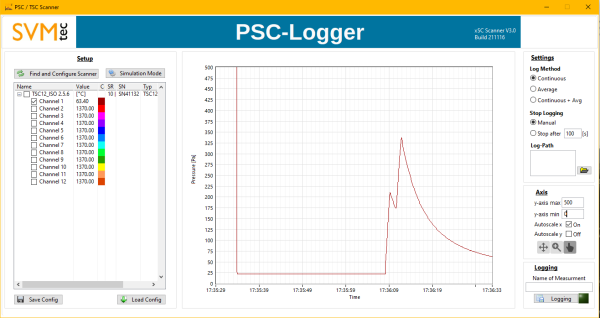

- Free software for configuration and logging
- LabVIEW driver available
| Technical Data | ||||||
| Available thermocouple sockets | ||||||
| Type | Measurement range | |||||
| - | min °C | max °C | ||||
| K | -270 | 1300 | ||||
| J | -210 | 1200 | ||||
| N | -270 | 1300 | ||||
| E | -270 | 1000 | ||||
| T | -270 | 400 | ||||
| R | -50 | 1768 | ||||
| S | -50 | 1768 | ||||
| B | 0 | 1820 | ||||
| Power Supply | ||||||
| TSC12 | via USB | |||||
| TSC12-LAN/-CAN | 7V-24V, 1A | |||||
| Environmental conditions | ||||||
| Temperature | 5 °C ... 50 °C | |||||
| Humidity | 0 ... 95%, nicht kondensierend | |||||
| Dimensions | ||||||
| Gehäuse | 130 x 55 x 95mm (w x h x d) | |||||
| Accuracy & Sample rate | ||||||
| Non-Linear & hysteresis | ±0.15% FSS | |||||
| Resolution | 19-Bit | |||||
| Sample rate per channel | 50Hz | |||||
| Driver and Software | ||||||
| Virtual COMPort Driver | ||||||
| Configuration software | ||||||
| LabVIEW example program with source code included | ||||||
| Supported Operating Systems | ||||||
| Windows XP, 7, 8, 10, Linux | ||||||
| Options - Interfaces | ||||||
| CAN Bus | ||||||
| RS232 via SubD | ||||||
| Ethernet | ||||||
