SVM-PoM measuring device for determining porosity

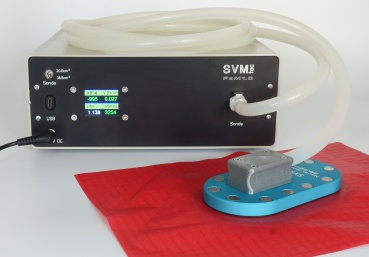

The Porosimeter PoM V1.0 is a measuring device for determining the air permeability of paraglider cloths and other technical cloths. A microcontroller-operated pump generates a negative pressure at a measuring surface and keeps it constant. At the same time, the flow rate is measured and the volume flow is calculated from this. The measured volume flow is displayed both in the physical unit of liters per square meter and hour [l/(m²h)] and as “JDC time” to enable a direct comparison with conventional measuring methods.

• Measuring time: Approx. 15 seconds per measurement, regardless of porosity (and therefore much faster than conventional porosimeters)

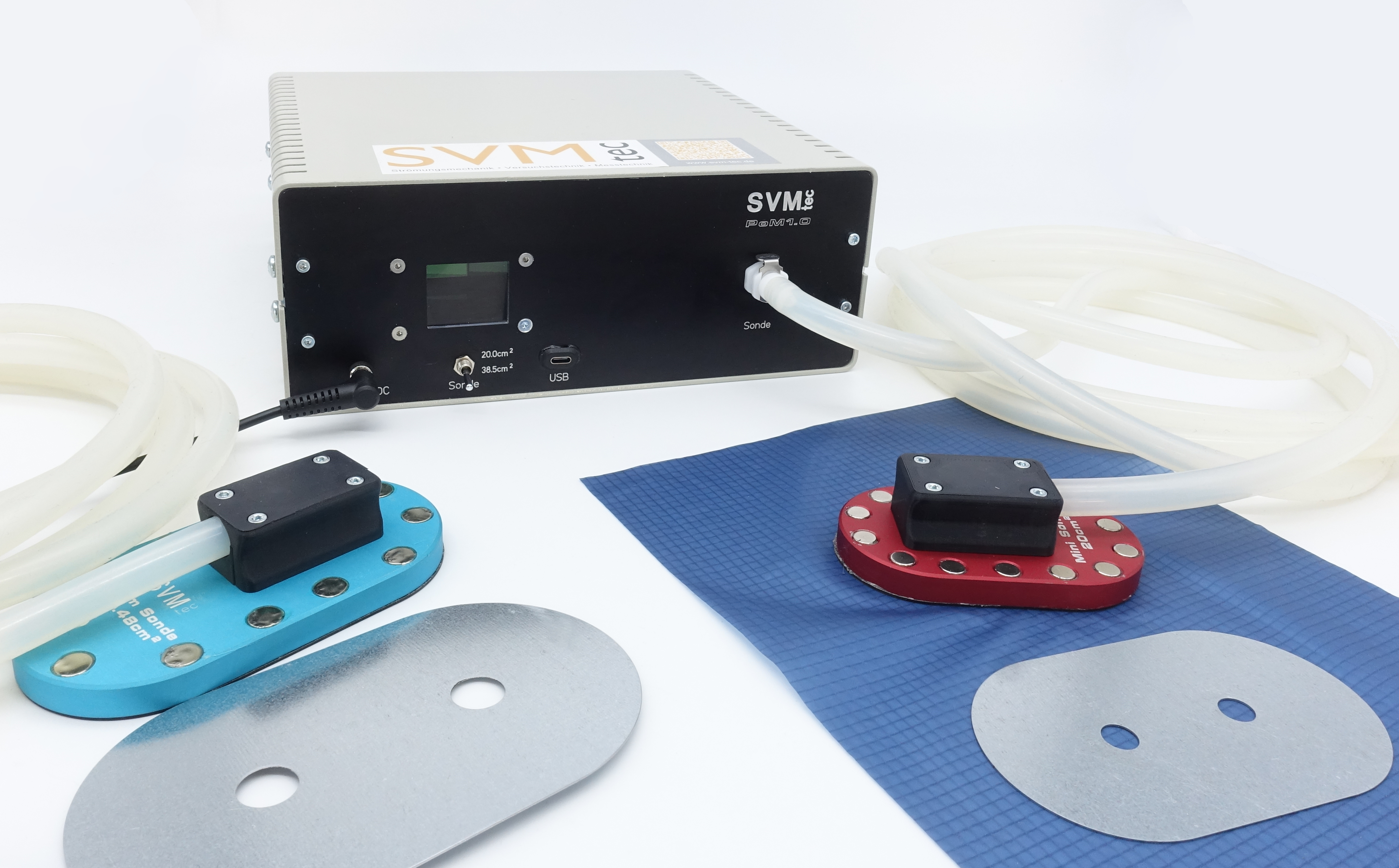

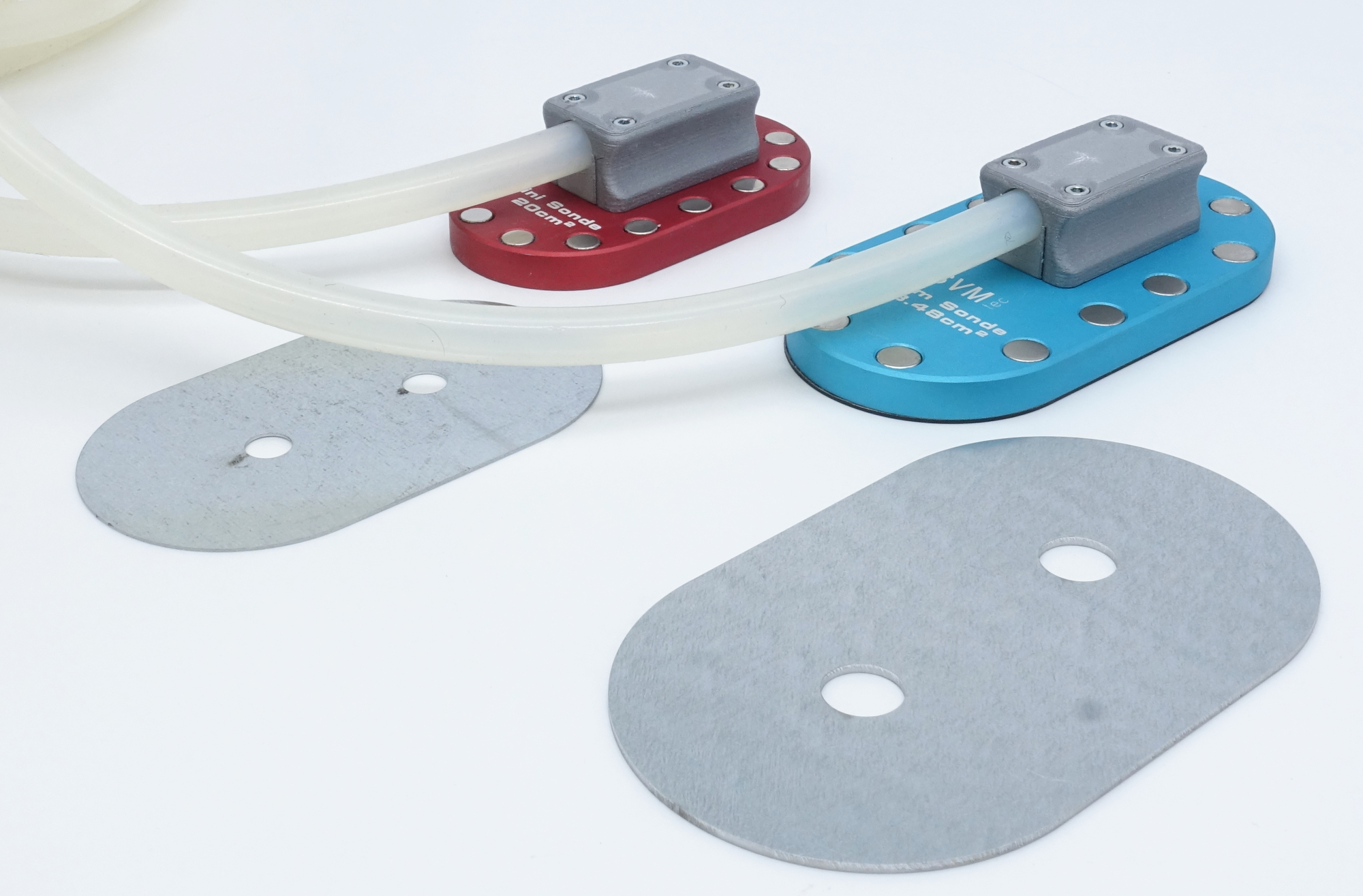

• Measuring probes: Two test areas: 38.5 cm² and 20 cm², ideal for different screen sizes.
• Adaptation: Strong neodymium magnets facilitate mounting
• Volume flow measurement: Output of the volume flow in the physical unit [l/(m²h)] and in “JDC times”

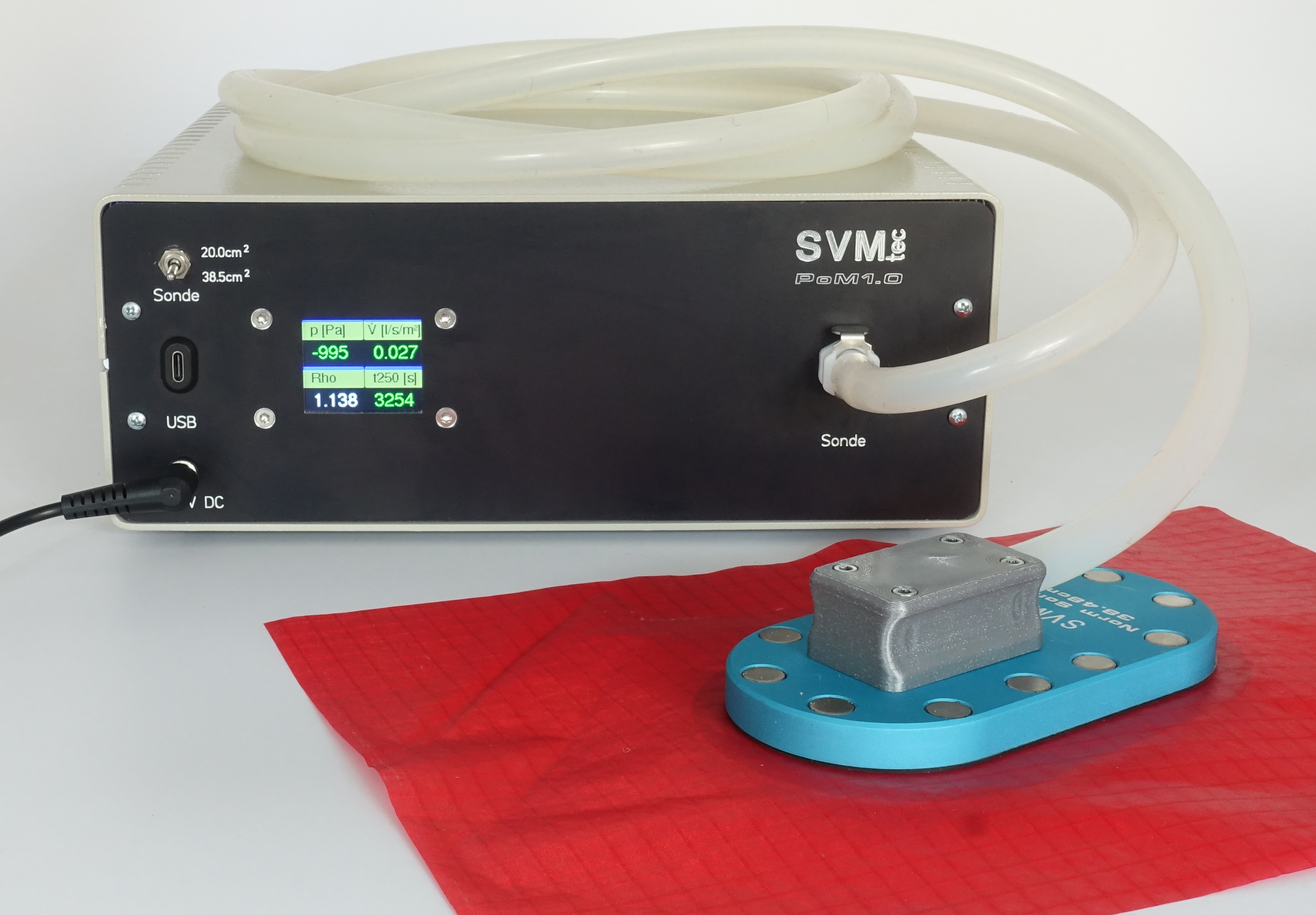

• Display: Color LCD display for clear and simple presentation of measured values
• Additional sensors: Integrated barometer and temperature sensor for density calculation - Power supply: Mains operation
• Optional battery operation possible
