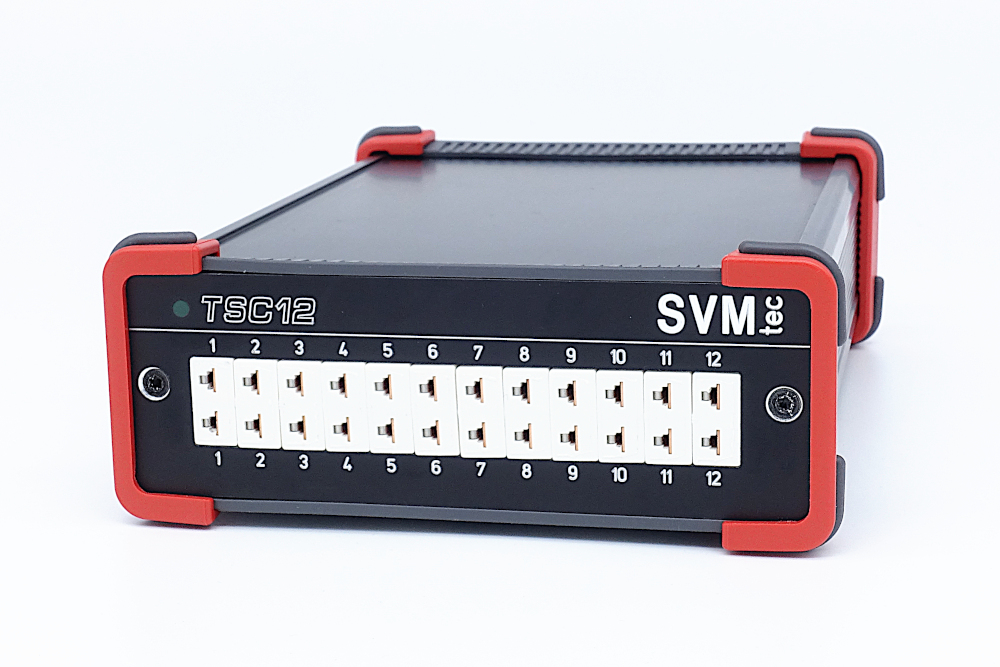

The temperature loggers of the TSC series are suitable for simultaneous monitoring of 12 thermocouple temperatures with high demands on accuracy.
Due to the cold junction compensation directly at the connection socket it is possible to use all common thermocouple types and to configure them channel by channel.
Alternatively, it is possible to select the thermocouple connection types individually according to customer specifications (e.g. type K).

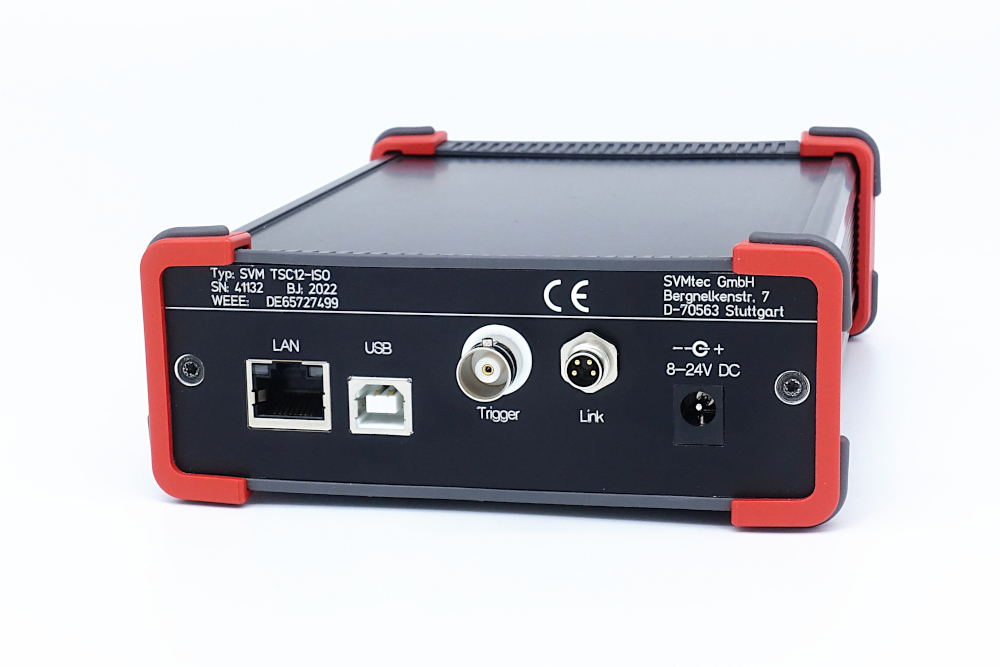

The data transfer is done via USB. Optionally, various additional interfaces can be ordered (RS232, RS485, CAN, Ethernet).
All common types (K, T, J, B, E, N, R, S) are supported. Depending on the type, temperatures from -270°C up to 1370°C can be processed and monitored.
Ethernet- (LAN), RS232- (SubD) or CAN-interfaces can be ordered.
The device has the following properties:
- Supported thermocouple socket types: K, T, J, B, E, N, R, S
- Galvanically isolated signal inputs
- Optional universal copper sockets for flexible inputs
- Sample rate: up to 100Hz/ channel
- 24bit AD converters
- Rigid aluminum housing
- Data transfer via USB
- Optionally Ethernet- (LAN), RS232- (SubD) oder CAN- (M8) interface available

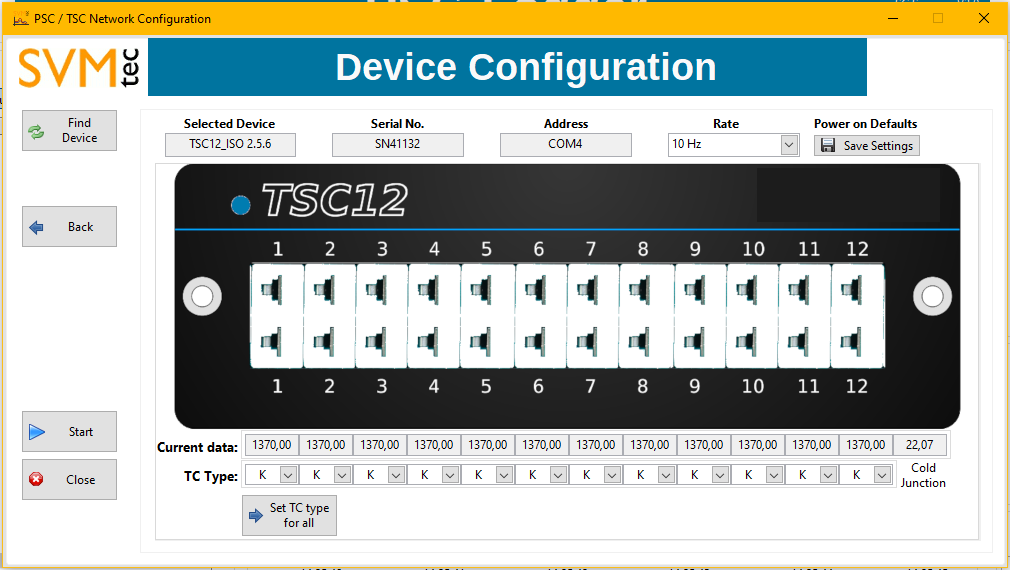

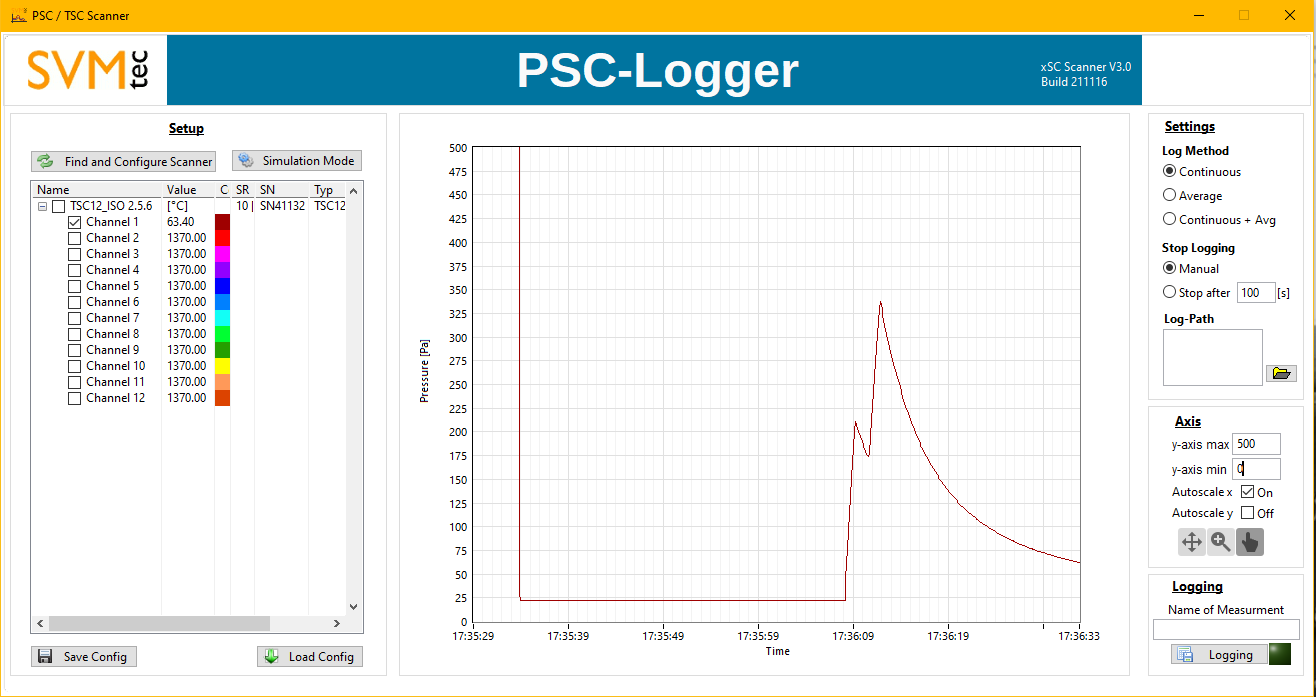

- Free configuration and logging software
- LabVIEW driver available
