Multichannel Pressure Scanner PSC4

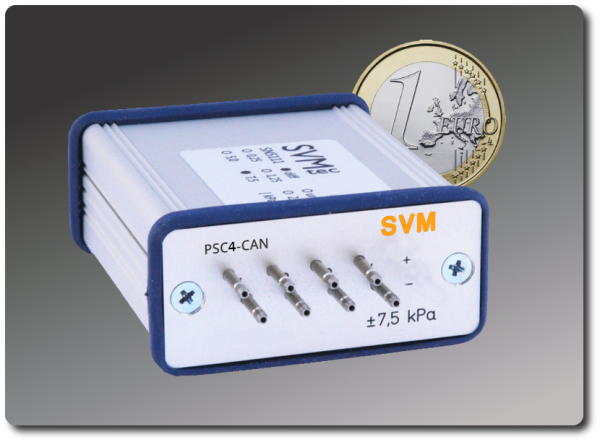

The PSC4-REF devices offer the ability for simultaneous measurements of up to 4 differential pressures. Each channel uses its own pressure reference port. The compact size of the device allows placing it close to the probe locations and hereby minimizing unwanted dampening effects of long tubes. In this version measurement data can be read via USB.
Optionally, PSC4 and PSC5 pressure scanners are available with CANbus interface.
Highlights:
- Acquisition rate up to 500 Hz
- Measurement data is read via USB
- Voltage supply via USB interface
| Technical Data | ||||
| Pressure Sensors | ||||
| Measurement Range | Maximum Pressure | |||
| kPa | mbar | Range | Proof Pressure | |
| 0,025 | 0,25 | uni/bi | 2000mbar | on request |
| 0,05 | 0,5 | uni/bi | 2000mbar | on request |
| 0,1 | 1 | uni/bi | 2000mbar | on request |
| 0,25 | 2,5 | uni/bi | 250 mbar | |
| 1,25 | 12,5 | uni/bi | 500 mbar | |
| 2,5 | 25 | uni/bi | 500 mbar | |
| 5 | 50 | uni/bi | 750 mbar | |
| 7,5 | 75 | uni/bi | 1200 mbar | |
| 10 | 100 | uni/bi | 1200 mbar | |
| 25 | 250 | uni/bi | 2000 mbar | |
| 50 | 500 | uni/bi | 2000 mbar | |
| 100 | 1000 | uni/bi | 3000 mbar | |
| 200 | 2000 | uni | 6000 mbar | |
| 500 | 5000 | uni | 7000 mbar | |
| Accuracy and Sample Rates | ||||
| Non-Linear & hysteresis | max +/- 0,25% FSS (+/- 0,1% FSS on demand) | |||
| Sample rate per channel | PSC4/5-CAN: 1 - 500Hz | |||
| Power Supply | ||||
| PSC4/5-CAN | via CAN-interface (7-24V, 50mA) | |||
| Environmental Conditions | ||||
| Temperature | 5 °C ... 50 °C | |||
| Humidity | 0 ... 95%, non-condensing | |||
| Operation mediums | Air and non-corrosive gases | |||
| Dimensions | ||||
| Housing | 60 x 30 x 80 mm (W x H x D) | |||
| Pressure Connections | Hose Barb D=2 mm | |||
| recommended hoses | Soft-PE and silicone hoses 3,5x1,5mm | |||
| Driver and Software | ||||
| Virtual COM-Port Driver | ||||

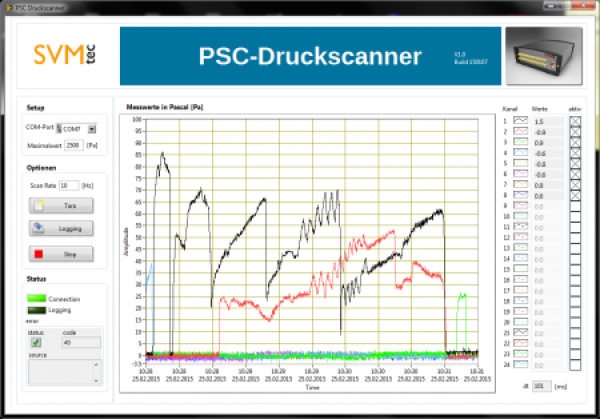

| Configuration Software | ||||
| LabVIEW example program with sourcecode included | ||||
| Supported Operating Systems | ||||
| Windows XP, 7, 8, 10, Linux | ||||
| Options - Interface | ||||
| CAN Bus | ||||
