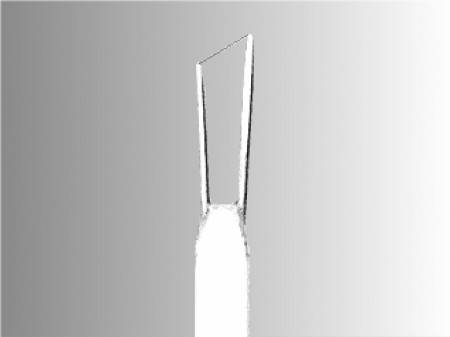

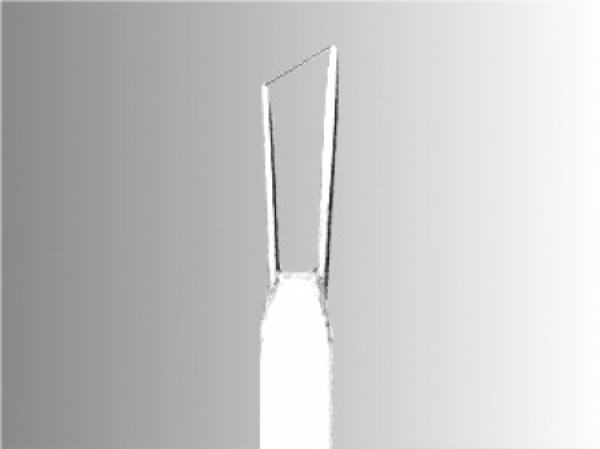

HWP 10/45 Hotwire Probe 10um, orientation 45° (uncalibrated)
The hotwire probes are designed for the usage in comination with the hotwire bridges eCTA, aCTA and eCCT.They work well for dynamic flow velocity measurements in air. The calibrated velocity range goes up to 50m/s. Higher velocities are possible. Due to the measurement principle, the probes suit especially for low flow velocities. The probes can be used in other gases as well, but therefore a special calibration is needed. It has to be mentioned, that particles in the flow field can destroy the wire. Also a pollution can change the characteristic line of the probe and leads to wrong measurement values.
| Technical data | |||
| Surrounding conditions | |||
| Fluid | Air, other non-corrosive gases possible | ||
| Temperature | -40°C ... 80°C | ||
| Humidity | not condensing | ||
|
|||
| Solution in combination with aCTA ,eCTA or eCCT hotwire bridge | |||
| Velocity 0 - 20m/s | 0,1m/s + 0,5%v.M. (typ.) | ||
| Velocity 20-50m/s | 1%v.M. (typ.) | ||
| Connectors | |||
| Plug | Binder 711 2-pol | ||
| Cable | 2x 0,14mm², 80cm(without shaft), not prolongable | ||
| Wire | |||
| Dimensions | d=10µm, l=4mm | ||
| Material | Wolfram, gold-plated | ||
| Application as temperature (eCCT) |
| Temperature range |
| -40...80°C (up to 250°C if shaft and cable do not exceed the limits) |
| Application as velocity sensor (eCTA/aCTA) | |
| Velocity range | 0-50m/s |
| >50m/s, erfordert spezielle Kalibrierung | |
| Temperature range | -40...80°C (up to 100°C, lower accuracy) |
| Dimensions |
|
|
