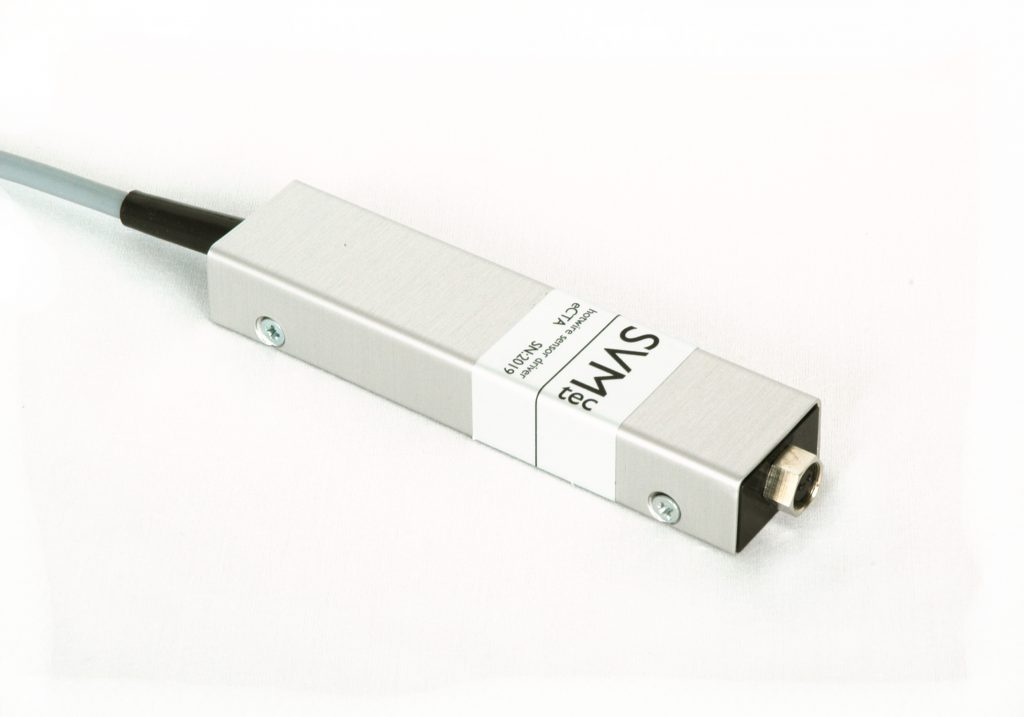

eCTA Hot-Wire Bridge
The eCTA is a full featured hot-wire bridge for the dynamic measurement of flow velocities in air. The calibrated velocity range in air reaches up to 50 m/s, higher velocities are possible. Due to the measurement principle the device is especially suited for small flow velocities. The application with different gases is in general possible but requires a special calibration.
The eCTA is designed to operate hot-wire probes of the series HWP1 0/xx, therefore no adjustments need to be made. The eCTA is conceived to work in combination with the data acquisition systems sDAQ and 4CTA.
| Connections | |
| Supply / signal | Binder 712, 7 pin |
| Hot-wire probe | Binder 711, 2 pin |
| Measurement accuracy | |
| Velocity 0…20 m/s | 0.1 m/s + 0.5 % FS (typ.) |
| Velocity 20…50 m/s | 1 % FS (typ.) |
| Ambient conditions for hot-wire probe | |
| Fluid | Air, different non-corrosive gases are possible but must be calibrated separately no particles, no air pollution |
| Temperature | 10…50°C within factory calibration, -10…70°C possible |
| Humidity | Non-condensing |
| Ambient conditions for electronics | |
| Temperature | 5° C…40° C |
| Humidity | Non-condensing |
| Dimensions | |
| Case | 112 mm x 28 mm x 21 mm |
| Cable length | 1.8 m, different lengths on request |
| Suitable hot-wire probes | |
| HWP 10/xx | |
