Multi-Channel Pressure Scanner PSC24

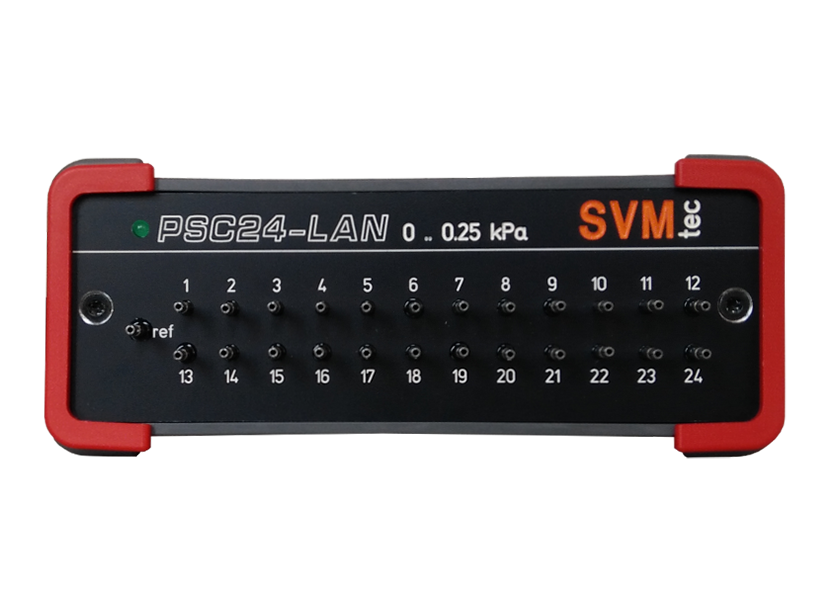

PSC24 modules enable the simultaneous acquisition of 24 differential pressures. The reference pressure lines of all channels are either connected together on one pressure port or differentially switched, depending on the customer’s requirements. Each channel can be equipped individually according to customer specifications. Unidirectional and bidirectional pressure ranges from 125 Pa to 15 kPa are available. By default, the measurement data is read out via a USB interface.

All PSC24 pressure scanners are optionally available with Ethernet (LAN), RS232 (SubD) or CAN bus interface (M8).

Features:

  • The data transmission is carried out as ASCII text in the unit Pascal [Pa] via the selected interface. The transmission rate can be set in the range between 1 and 50Hz using a simple protocol.
  • A tare function can be triggered either by pressing the tare button on the front panel or by a software command.
  • The pressure scanner is powered by the USB port or by an external power supply. The voltage range is 7-24 VDC. In the CAN-version power is supplied via the CAN-Bus interface.
  • PSCx-CAN modules can be cascaded via an M8 sensor cable.
  • Since the pressure scanner logs into the system as a virtual COM port, any software that supports the RS232 protocol can be used. A LabVIEW sample program is included.

Measurement ranges:

Measurement ranges between +/- 125Pa and 0 – 16bar can be realized with our PSC pressure scanners.

Please visit our online shop for available options or contact us directly!

Accuracy and scan rates
Nonlinearity & Hysterese max. ±0,25% FSS
Scan rate per channel 1-50 Hz
Power Supply
from USB (without external power supply)
PSC-LAN / PSC-CAN 7-24 V, 500 mA
Environmental conditions
Temperature 5° C…50° C
Humidity 0…95%, non condensing
Operating medium Air and non-corrosive gases
Dimensions
Housing (standard) 130 x 55 x 170 mm (B x H x D)
pressure connectors hose nozzles D = 2,0 mm
Recommended tubes Soft-PE and silicone tubes 1,5 x 3,5 mm
Drivers & Software
Virtual COM-Port

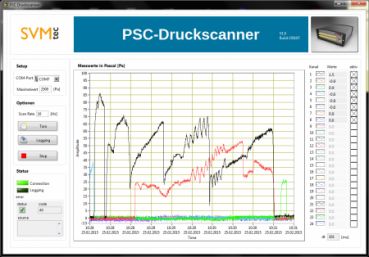

Configuration software
LabVIEW-demo sourcecode
Supported operation systems
Windows XP, 7, 8, 10, 11, Linux
Options
All PSC-systems can be optionally equipped with CAN Bus, LAN or RS232 interfaces
